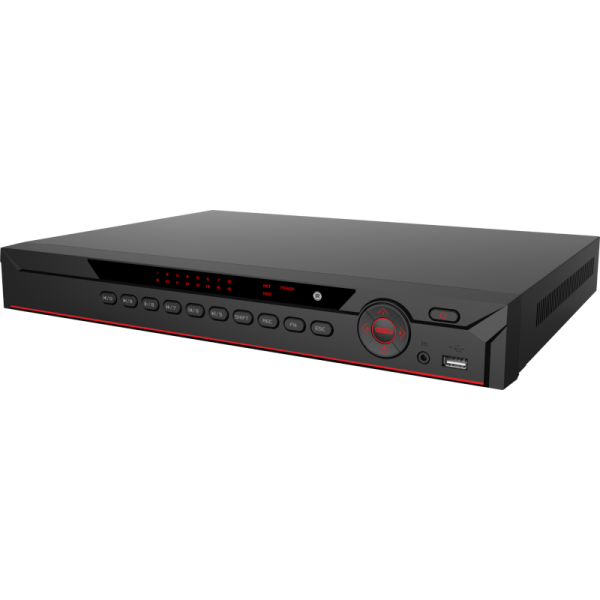

8 CH 4K NVR HD Resolution, H.265/H.264, 200 Mbps, 2 HDD Bays, Built-in 8 PoE Ports

More Views

8 CH 4K NVR HD Resolution, H.265/H.264, 200 Mbps, 2 HDD Bays, Built-in 8 PoE Ports

Availability: In stock

Model: NVR-C402HP8-8P-4

8Channel IP Camera Input, H.265/H.264/MJPEG Dual Codec Decoding, Up to 8ch@1080P(4ch@H.265+4ch@H.264) Realtime Live-view, Up to 12Mp Resolution preview&playback, HDMI/VGA Simultaneous Video Output, 8 Channel Synchronous Realtime playback, GRID Interface, Support 2 SATA HDDs Up to 12TB, 2 USB(1 USB3.0), Support IPC UPnP, 8PoE Ports, Support P2P, QR Code, Scan & Add (Hard Drive Not Included)


Details

Model NVR-C402HP8-8P-4K
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video& Audio
IP Camera Input 8 channel
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI , 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264/MJPEG
Resolution 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
Record Rate 192Mbps
Bit Rate 1~ 20Mbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel
Relay Output 3 channel
Playback & Backup
Sync Playback 1/4/8
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 8 ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 2 SATA III ports, up to 12TB
Auxiliary Interface
USB 2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232 1 port, For PC communication& Keyboard
RS485 1 port, For PTZ control
General
Power Supply Single, AC 100~240V, 50/60 Hz
Power Consumption NVR: 15.2W for PoE model(without HDD)
PoE: Max 25.5W for single port,120W in total
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Product Dimension
(W×D×H)

1U, 375mm×327mm×53mm, 14.75" x 13" x 2"

Product Weight 2.65KG, 5.85 lbs (without HDD)

Additional Information

UPC 688474290433
Recorder Technology 4K
Recorder Channel 8 Channel
Recording Rate 192Mbps
